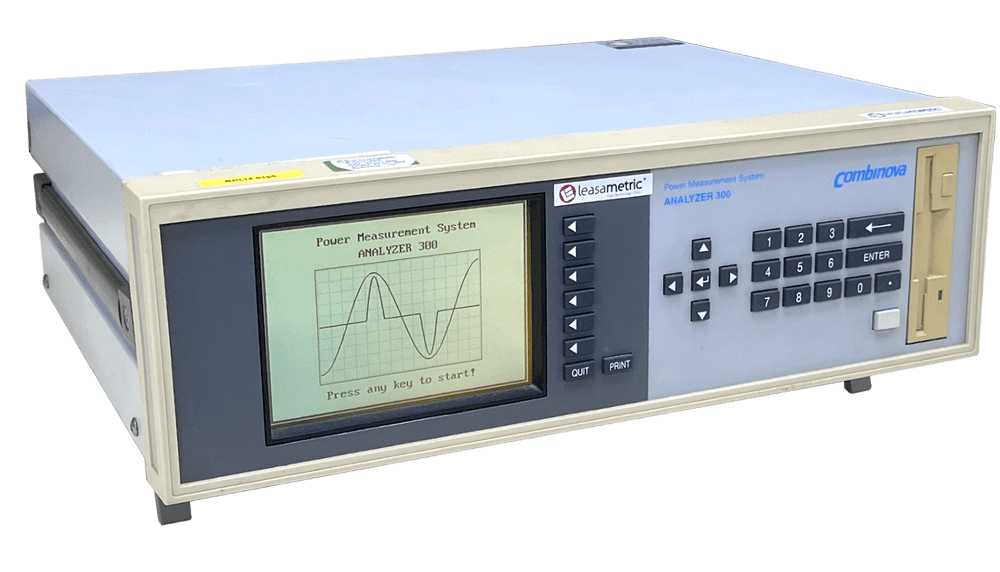

6630 Analyser 300 Chroma reNEWed by Leasametric
Energy Analysers
Power Analyser System, 10 to 2000 V peak, and 0 to 300 A peak input range, LCD 640 x 480 pixels with blacklight, RS-232 Remote control.
| RENTAL | 95 € /week* | |||||||||||
| SALE |
|
|||||||||||
Specifications : 6630 Analyser 300 Chroma reNEWed by Leasametric
Combinova – Chroma Power Analyser 300 or 6630 :
- Test Voltage and Current Harmonics in compliance with IEC61000-3-2, IEC61000-3-2 A14,
- Test Flicker (voltage fluctuations) pre-compliance with IEC61000-3-3,
- Advanced DFT and DSP technology,
- Multi-processor system configuration,
- Modular instrument with three measurement modules in DSP type,
- 5 unique test function modules with Harmonics, Flickers, Multi-meter, Recording, and Waveform for multipurpose test application requirements,
- Harmonic analysis and bar graph / table results display up to 40 harmonics,
- 2-channel 18-bit A/D converter in each measurement module,
- Simultaneous presentation for voltage and current curves.(1-16 periods),
- LCD 640 x 480 pixels with blacklight,
- Wide voltage 10 to 2000 V peak, and 0 to 300 A peak input range,
- Parallel an RS-232 interface.
Download the technical documentation 6630 Analyser 300 Chroma reNEWed by Leasametric
You need to be connected to consult and download the documentation
Create my account / Connexion
The Power Measurement System, a completely new concept, comprises an advanced Chroma 6630 Power Analyser and a Chroma 6530 Series or other Chroma family AC Power Source is the ATE for Voltage and Current Harmonics test in compliance with IEC61000-3-2, IEC61000-3-2 A14, and for Flicker test (voltage fluctuations) following the IEC 61000-3-3 international standards.
Performance testing is pre-programmed limits to specifications against standardized limits.
