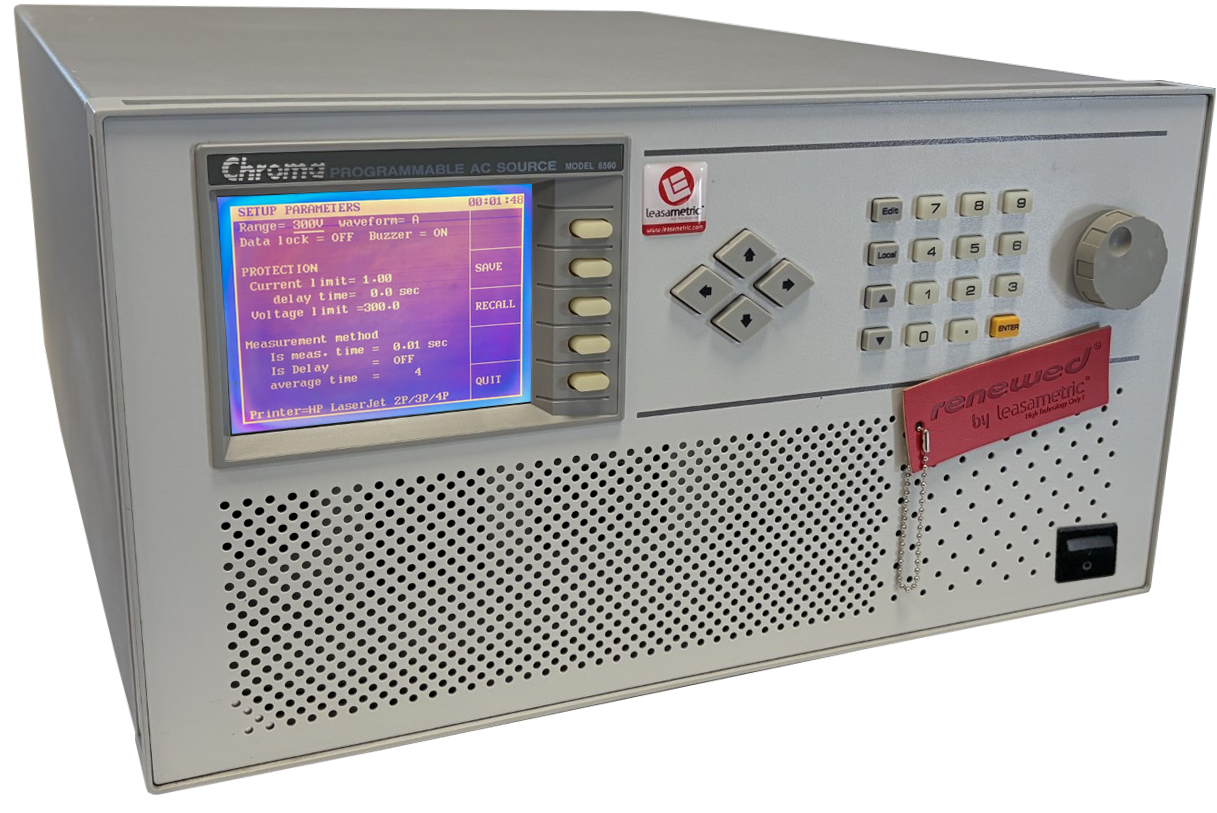

6530 Chroma
AC power
Alternative AC Power Supply, 15 Hz to 2 KHz, full programmable.
| RENTAL | 279 € /week* | |||||||
| SALE |
|
|||||||
Specifications : 6530 Chroma
Alternative AC Power Supply :
- 15 Hz to 2 KHz,
- Output 0-300 V & 30 A maximum,
- 5 KW,
- Generates Harmonics 0,43%, ramps, test sequences, Micro-shunts, 11 measurement in total,
- GP-IB full programmable.
Download the technical documentation 6530 Chroma
You need to be connected to consult and download the documentation
Create my account / Connexion
Chroma 6500 Series AC Power Source delivers the maximum rated power for the output voltage up to 300 Vac, and the frequency between 15 Hz to 2000 Hz.
It is suitable for commercial applications (47-63 Hz) such as avionics, marine, and military applications at 400Hz or higher frequency, or for electrical motor, airconditioner test applications at 20Hz.
All models generate very clean sine or square waveforms output with typical distortion less than 0.5 %.
