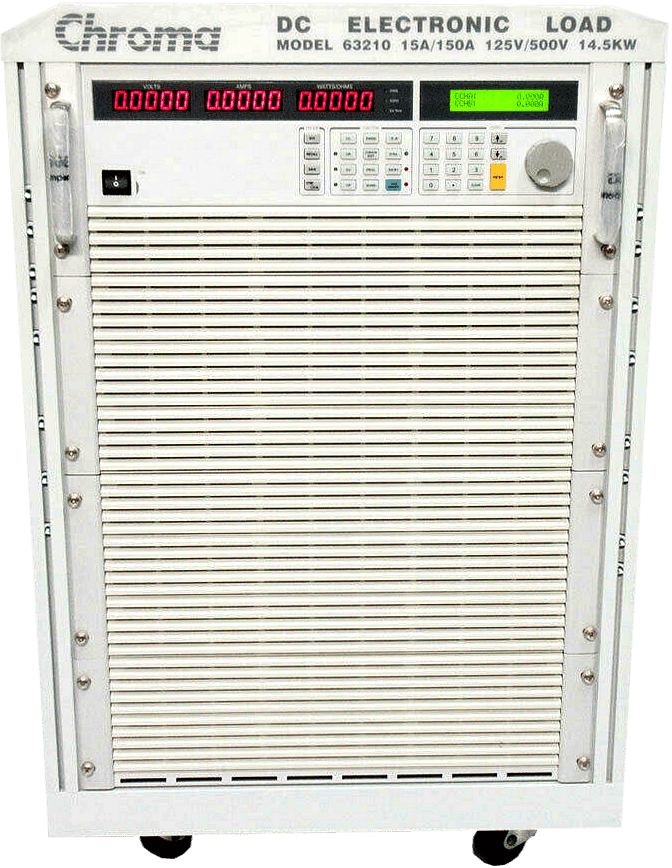

63210 Chroma

Programmable DC Electronic Load, Chroma 63200 series, model 63210 DC, 150 A, 500 V, ou 14.5 kW max :

• Power Rating : 2,6 kW, 5,2 kW, 6,5 kW, 10,4 kW, 14,5 kW, 15,6 kW,
• Voltage range : 0 ~ 80 V/0 ~ 600 V/0 ~ 1000 V,
• Current range : Up to 1000A,
• CC, CR, CV, CP load modes,
• Master/Slave paralleling control mode, allow synchronous load control under static and dynamic loading mode (Up to 93.6 kW),
• Dynamic loading : Up to 20 kHz,
• Only need 1 V to draw rated current,
• Programmable slew rate, up to 41 A/µs,
• Measurement : Voltage/Current/Power/Resistance,
• Large LED/LCD display,
• External loading waveform simulation,
• Short circuit simulation and short circuit current measurement,
• Full protection : OC, OP, OT protection and OV, reverse alarm,
• Versatile remote controller,
• GP-IB & RS-232C interfaces,
• Surge load capability,
• Battery discharge timer.
