61508 Chroma
AC power

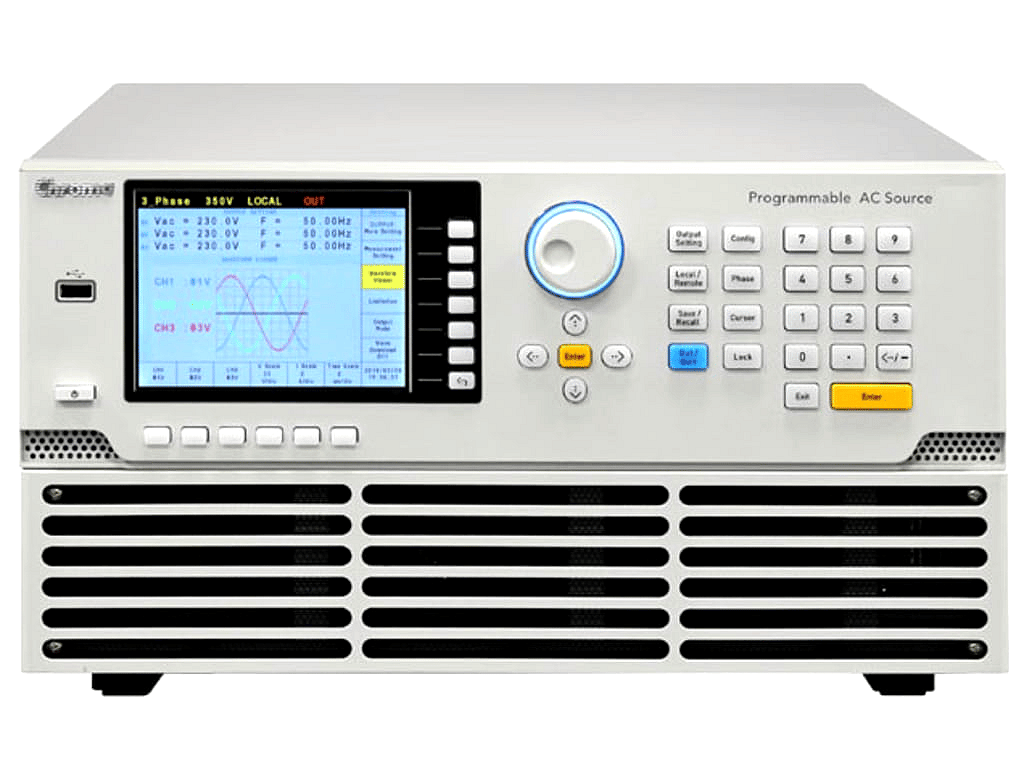

Programmable AC Power Source, model 61508, 4,5 kVA, GP-IB, RS-232, USB, and Ethernet Remote interface.
| RENTAL | 1 125 € /week* | ||||
| SALE |
|
||||
Specifications : 61508 Chroma
Programmable AC Power Source, model 61509/61508/61507/61609/61608/61607 :
- Power rating :
- 61509/61609 : 6 kVA,
- 61508/61608 : 4.5 kVA
- 61507/61607 : 3 kVA
- Voltage range: 0-175V/0-350V/Auto,
- Frequency: DC, 15Hz-2kHz (5kHz option),
- 5U high power density design,
- Single-phase or three-phase output selectable,
- Programmable slew rate setting for changing voltage and frequency,
- Programmable voltage and current limit,
- High output current crest factor for inrush current testing,
- Turn on and turn off phase angle control,
- TTL signal which indicates output transient,
- LIST, PULSE, STEP mode functions for testing Power Line Disturbance (PLD) simulation,
- Voltage dips, short interruption, and voltage variation simulation,
- Harmonics and inter-harmonics waveform synthesizer,
- Comprehensive measurement capability including current harmonics,
- Analog programmable interfaces,
- Remote interface: GP-IB, RS-232, USB, and Ethernet, Higher output power capability by implementing master-slave parallel output
function, - Brand New Price and Rental Price is for 61508. Please cal for other models.
Download the technical documentation 61508 Chroma
The global market for AC power testing demands for a more sophisticated, high performance AC source capable of simulating a wide range of AC line conditions.
To meet these demands, Chroma has developed a high power density, low form factor (5U) instrument. The Chroma 61509/61508/61507/61609/61608/61607 models are the latest of the 61500/61600 series AC Source.
The Chroma 61500/61600 series programmable AC source are the right solutions to meet complex single and three phase requirements due to their ability to simulate AC line conditions and measure critical product characteristics during testing. These features make the 61500/61600 series ideal for commercial, power electronics, avionics, military, and regulation test applications from bench-top R/D design verification and quality assurance to mass production.
DC functionality enhancements, with DC power ratings of up to 100% of full output power, has further extended test application capabilities especially for AC/DC server PSU.
