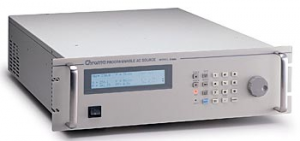

61502 Chroma
AC power
AC Power source, 1000 W, DC, 15 Hz to 1000 Hz, 0-300 V output, Optional GP-IB, RS-232, LAN and USB interface.
| RENTAL | 295 € /week* | ||||
| SALE |
|
||||
Specifications : 61502 Chroma
AC Power source :
Output Rating (serie) :
500 VA (61501),
1000 VA (61502),
1500 VA (61503),
2000 VA (61504),
4000 VA (61505)
- Voltage range : 0-150 V/0-300 V/Auto,
- Compact size and weight attributable to advance PWM technology,
- AC+DC output mode for voltage DC offset simulation,
- Programmable slew rate setting for changing voltage and frequency,
- Low output impedance for testing IEC 61000-3-2 ( 61505 ),
- Programmable output impedance for testing IEC 61000-3-3,
- LIST, PULSE, STEP mode function for testing power line disturbance (PLD) simulation capability,
- IEC 61000-4-11 voltage dips, short and variation simulation,
- Harmonics, inter-harmonics waveform synthesizer for testing IEC 61000-4-13,
- Programmable voltage, current limit,
- Comprehensive measurement capability, including current harmonics,
- High output current crest factor, ideal for inrush current testing,
- Turn on, turn off phase angle control,
- TTL signal which indicates output transient,
- Analog programmable interface,
- 3 units combined to 3-phase power output,
- Easy-use software for operation and IEC regulation test,
- Optional GPIB, RS-232, LAN and USB interface.
Download the technical documentation 61502 Chroma
You need to be connected to consult and download the documentation
Create my account / Connexion
Chroma AC power source 61500 series sets up the new standard for high performance AC power source.
It equips with all powerful features such as power line disturbance (PLD) simulation, programmable output impedance, comprehensive measurement functions, wave-shape synthesis and regulation test software.
These features make the 61500 series ideal for commercial, power electronics, avionics, military and regulation test applications from bench-top testing to mass production.
