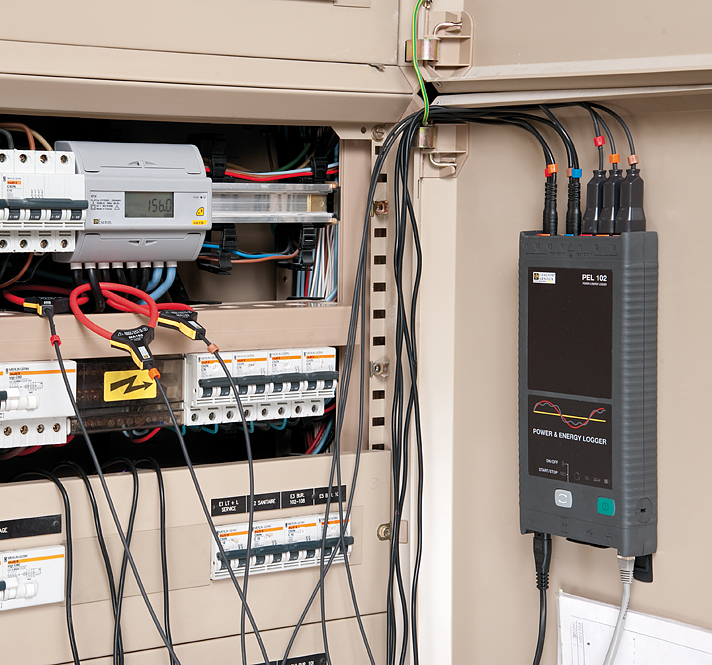

PEL102 Chauvin Arnoux

Recorders – three-phase power and energy analyzer :

• 3 voltages and 3 currents in,
• Maximum voltage 1000 V,
• Maximum current 10 KA,
• Active Power (W) Reactive Power (VAR) Apparent Mighty (VA) Active Energy (Wh) Reactive Energy (VARh) Apparent energy (VAh),
• Use frequency 0-400 Hz,
• Power measure max 10 GW,
• Harmonic measures,
• SD 2GB card memory,
• Protection 600 V CAT IV / 1,000 V CAT III,
• LAN / Bluetooth / USB interfaces,
• PC PEL Transfer Software.
