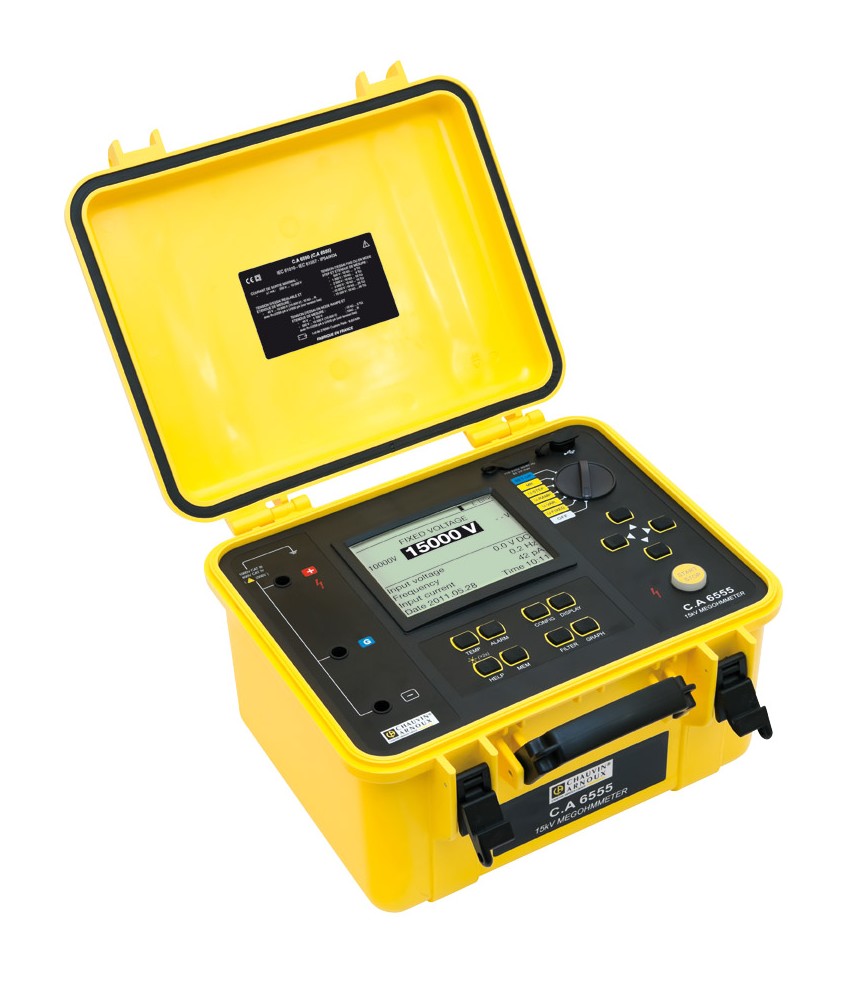

CA6555 Chauvin Arnoux

Insulation Measurement at 15 kV :

• Wide measurement range from 10 kΩ to 30 TΩ,
• Fixed or programmable test voltage from 40 V to 10/15 kV 5 mA charging current,
• Large backlit LCD screen with digital display, bargraph and R(t)+u(t) , i(t) and i(u) graphs,
• Automatic calculation of DAR / PI / DD / R (ppm/V) ratios.
• Storage of 80,000 measurements and Real-time Clock,
• Optically-isolated USB communication for transfer onto PC and report generation with the DataView¬Æ software,
• Alimentation par batterie NiMH rechargeable avec chargeur externe
• IEC 61557 -1 -2
• Electrical Security IEC 61010 1000V CAT IV
• 406 x 330 x 174 mm, 6 kg.
