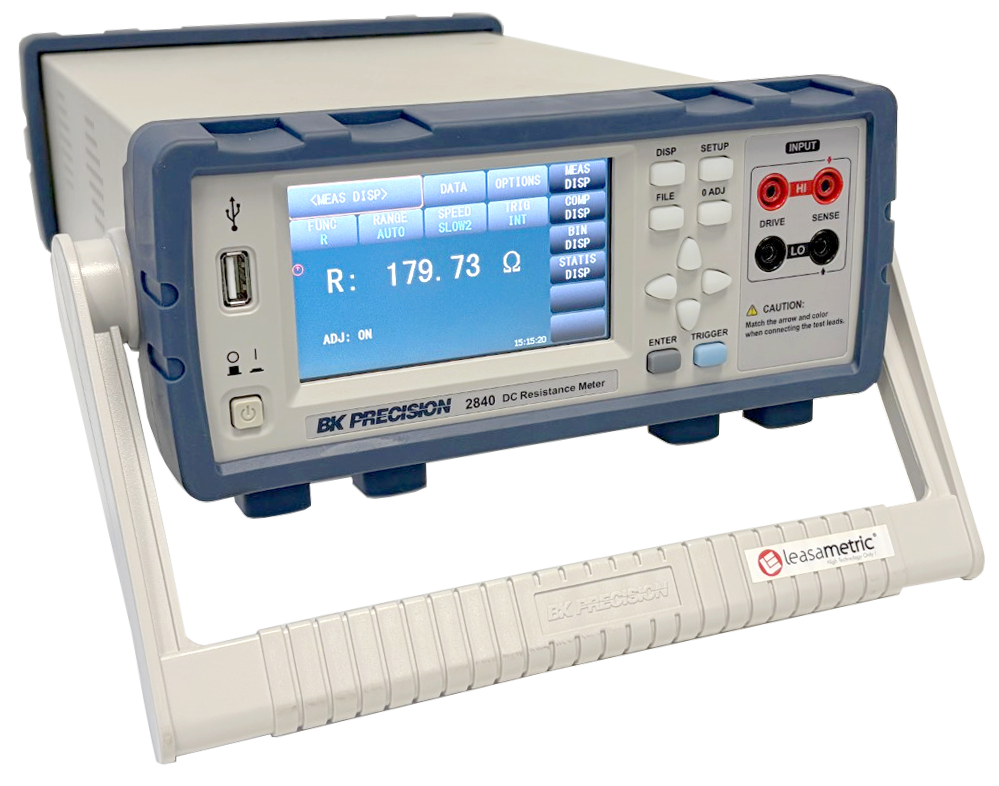

BK2840 BK Precision
Megohm Meters, Milliohm Meters
Benchtop milliohmmeter, 20 mΩ to 20 kΩ, 4.3-inch touchscreen, screenshot capture to USB drive, RS-232 interface.
| RENTAL | 24 € /week* | |||||||||||
| SALE |
|
|||||||||||
Specifications : BK2840 BK Precision
Benchtop milliohmmeter :
- Ranges : 20 mΩ to 20 kΩ (BK2840) and 20 mΩ to 100 MΩ (BK2841),
- Resolution : 1 μΩ (BK2840) and 0.1 μΩ (BK2841),
- 4.3-inch touchscreen LCD,
- 4-wire measurements using the supplied Kelvin leads,
- Low-power measurements to protect the components under test,
- Fast measurement speed (20 ms) to maximize production throughput,
- Bin sorting function with statistical analysis,
- Screenshot capture to USB drive,
- Interfaces : RS-232, USB (USBTMC and virtual COM), LAN (on BK2841).
Download the technical documentation BK2840 BK Precision
You need to be connected to consult and download the documentation
Create my account / Connexion
The BK2840-2841 series offers precision milliohmmeters with a resolution of up to 0.1 µΩ. Both models are designed for low-resistance measurements—such as relay contacts, switch contacts, and PCB traces—as well as any resistance measurement that falls outside the range of a standard multimeter.
They feature a touchscreen LCD for intuitive and easy operation.
Both units offer Low Power Resistance (LPR) measurements and variable measurement rates.
A “handler” interface allows the instrument to be integrated into automated test systems (e.g., for production sorting or component sorting).
