MS46122B Anritsu reNEWed by Leasametric
Network Analysers > 6 GHz
1 MHz to 43,5 GHz ShockLine™ Compact Vector Network Analyzers, USB remote control.
Price quoted for the 8 GHz version without options. Please contact us for other versions.
| RENTAL | 435 € /week* | |||||||
| SALE |
|
|||||||
Specifications : MS46122B Anritsu reNEWed by Leasametric
ShockLine™ Compact Vector Network Analyzers series :
- MS46122B-010, 1 MHz to 8 GHz, 2-Port
- MS46122B-020, 1 MHz to 20 GHz, 2-Port
- MS46122B-043, 1 MHz to 43.5 GHz, 2-Port
- Option 002, Time Domain, 024 Universal Fixture Extraction,
- 80 to 100 dB Dynamic Range,
- -20 to 5 dB Output Power Settings,
- 1 Hz Frequency Resolution,
- USB interface.
Download the technical documentation MS46122B Anritsu reNEWed by Leasametric

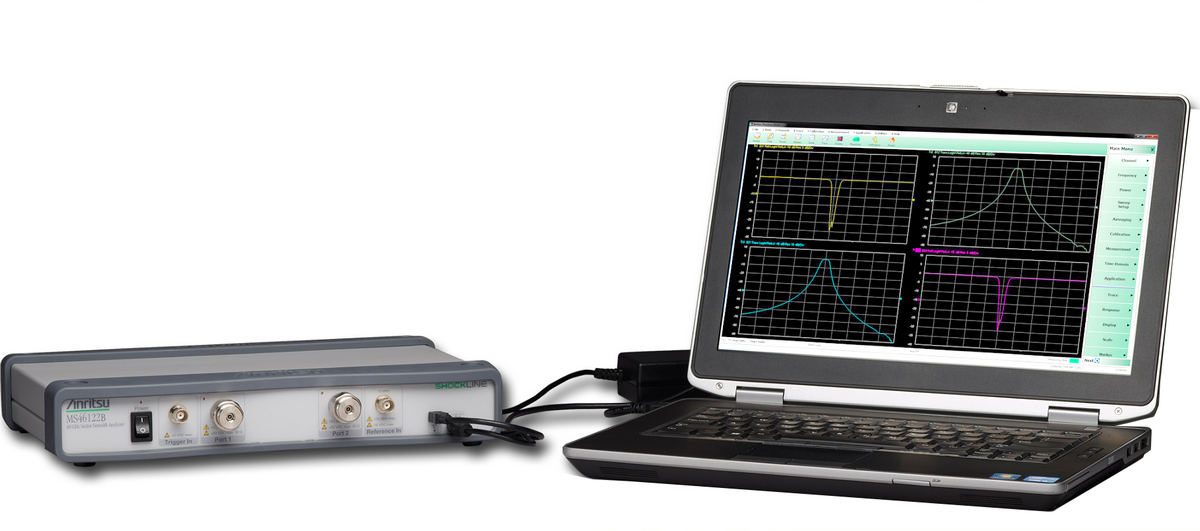

The MS46122B is part of the ShockLine™ family of Vector Network Analyzers from Anritsu.
It is a very low-cost series of 1U high, 2-port Compact Vector Network Analyzers (VNAs).
It is available in three frequency ranges : 1 MHz to 8/20/43.5 GHz, and is capable of S-parameter and time domain measurements.
The MS46122B is based on patented ShockLine™ VNA-on-chip technology, which simplifies the internal VNA architecture at high frequencies, reduces instrument cost, and enhances accuracy and measurement repeatability.
The combination of low cost and good performance make ShockLine™ VNAs ideal candidates for testing RF and Microwave passive devices to 43.5 GHz.
The MS46122B series is controlled through USB from an external PC. The MS46122B runs the same software as the rest of the ShockLine family, providing a powerful graphical user interface for debugging and manual testing of devices.
