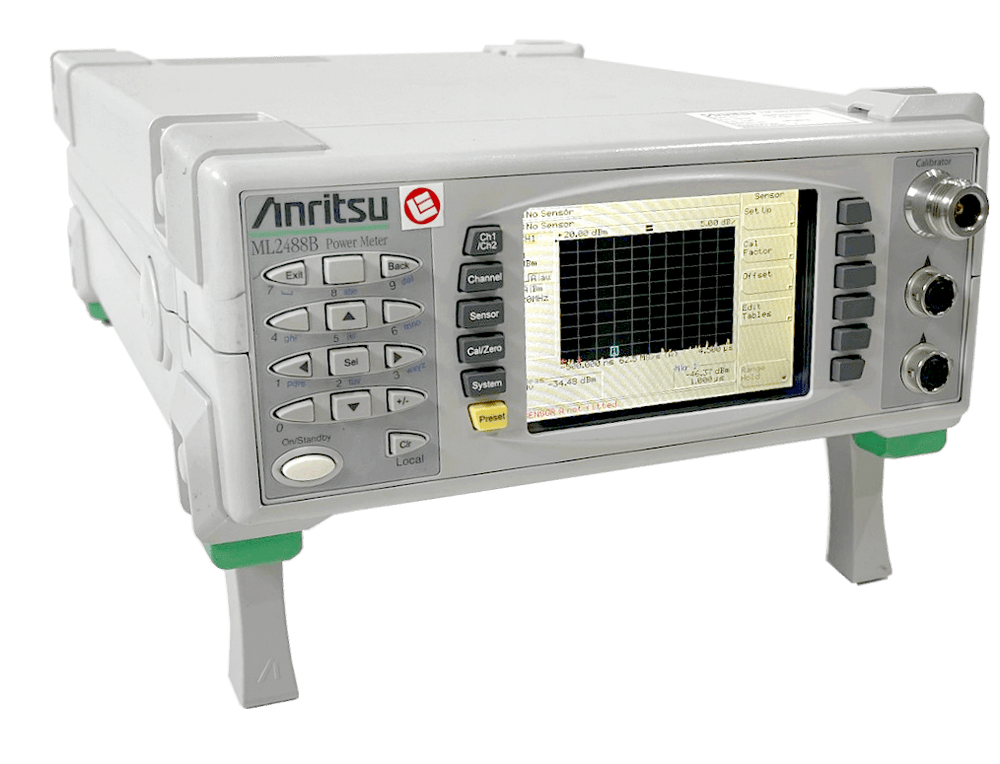

ML2488B Anritsu

Power Meter, Dual Input :

• Frequency Range : 100 kHz to 65 GHz, sensor dependant,
• Dynamic Range -70 dBm to +20 dBm,
• Rise Time <18 ns,
• Selectable 5/20 MHz Filter,
• Accurate power measurements related to all Bluetooth and IEEE 802.11 WLAN standards,
• 20 MHz Measurement Bandwidth,
• Larger Color Display with Graphical MMI,
• Multiple Measurement Gates for Pulsed Systems,
• High Speed GP-IB remote control,
• Peak, Average, and Crest Measurements,
• Built in Statistics, CCDF, CDF and PDF,
• Radio System Presets,
• Masks and Limit lines,
• Multiple Markers and Marker Functions.
