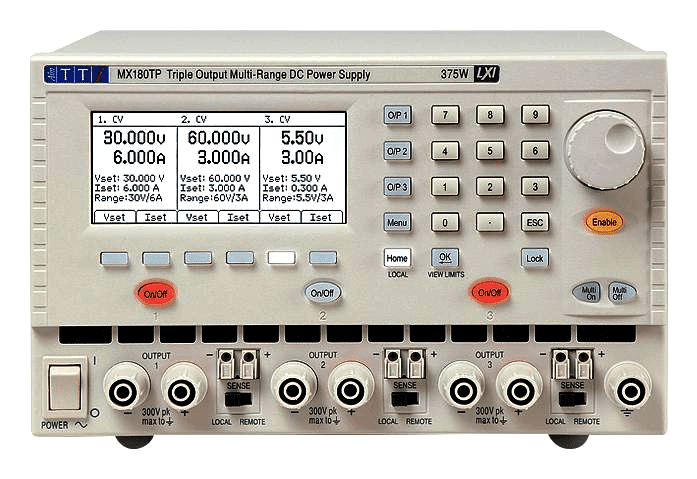

MX180 TP TTI

TTi MX180 TP power supply triple outputs :

• 2 channels, 0 to 30 V 0 to 6 A and 0 to 5.5 V 0 to 3 A, 180 W and 18 W for the 5.5 V output, total power 378 W,
• Switching the outputs allows reaching 120 V and 20 A,
• 21 output combinations for maximum flexibility,
• Low output noise and low ripple via linear final regulation,
• High resolution adjustment of 1 mV and 1 mA,
• Large LCD screen,
• Up to 50 configuration memorizations,
• USB/RS232, LAN (LXI) interfaces as standard & GP-IB as an option.

Other models in the range (contact us for the best prices) :
MX100Q : Quadruple 420 W DC power supply.
MX100QP : 420 W Quad DC Power Supply + USB/RS232/LXI/LAN/GP-IB.
MX100T : Triple 315 W DC power supply.
MX100TP : Triple 315 W DC power supply + USB/RS232/LAN (standard) GP-IB (optional).
MX180T : Triple DC power supply Triple 375 W power supply.
