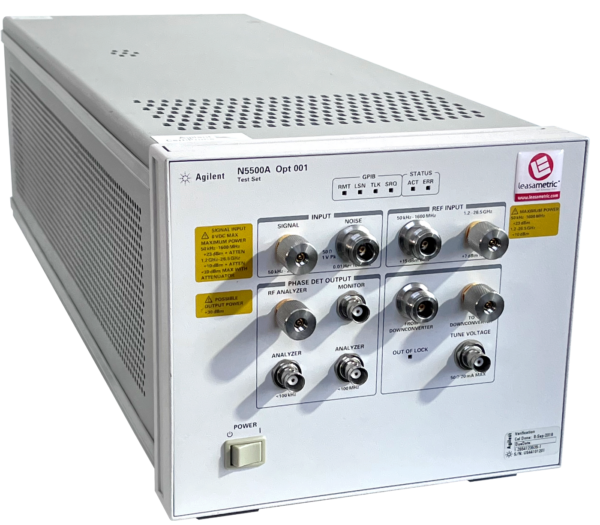

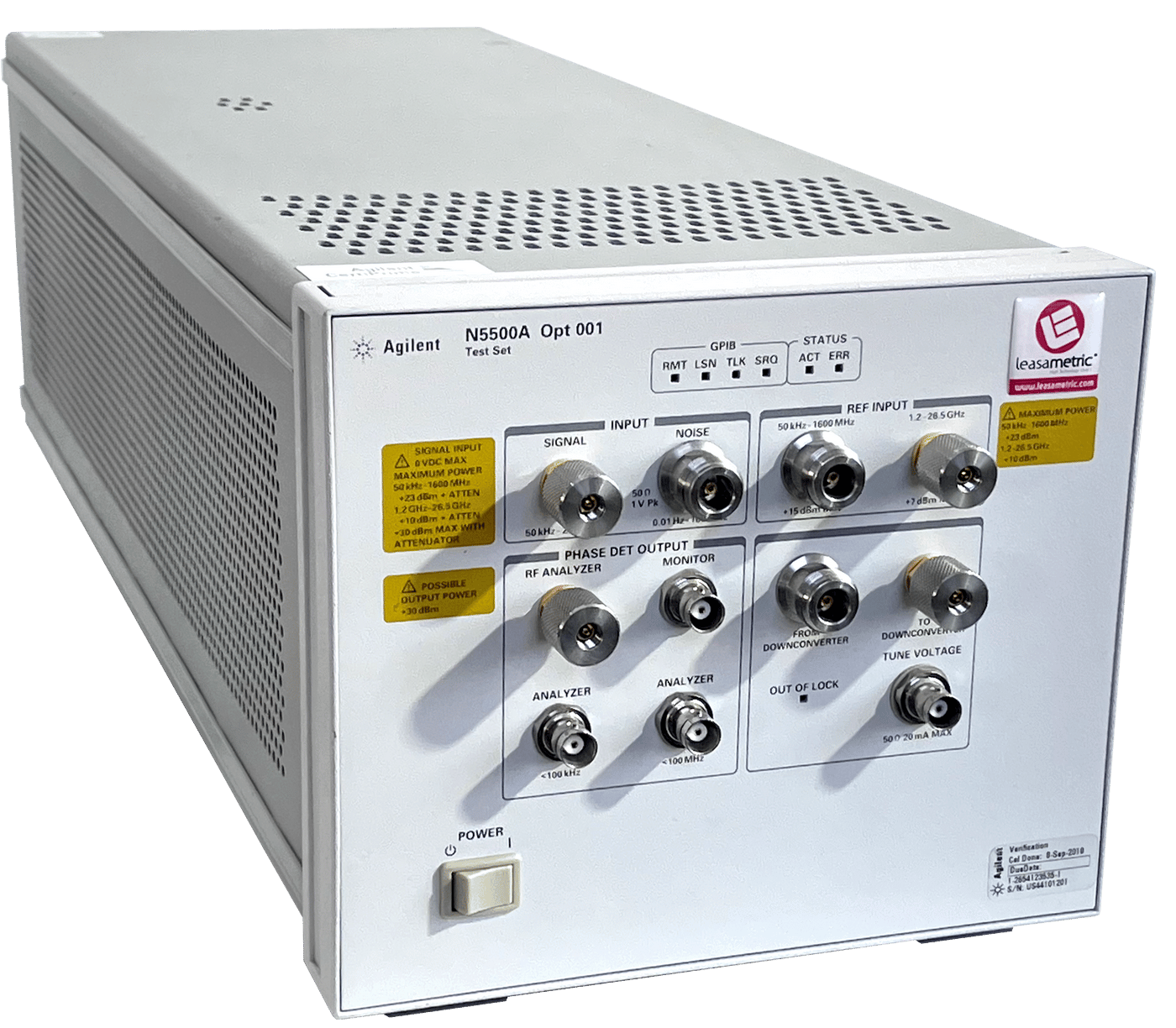

N5500A/001 Keysight

Phase Noise Test Set, part of the E5505A Phase Noise Measurement System :

• Carrier frequencies range from 50 kHz to 26,5 GHz, (See Configuration PDF)
• Offset frequencies of 0.01 Hz to 100 MHz,
• Option 001 adds an input attenuator, input switching, an AM detector, and a microwave phase detector to the test set,
• 50 kHz-1600 MHz (REF INPUT), Level range: +15 to +23 dBm, 50 Ω,
• 26.5 GHz (REF INPUT), Level range: +7 to +10 dBm,
• maximum noise level at 10 kHz offset frequencies from -170 to -160 dBc/Hz,
• GP-IB, computer, Software N5510,
• Weight ~ 30 lbs (13.6 kg).
