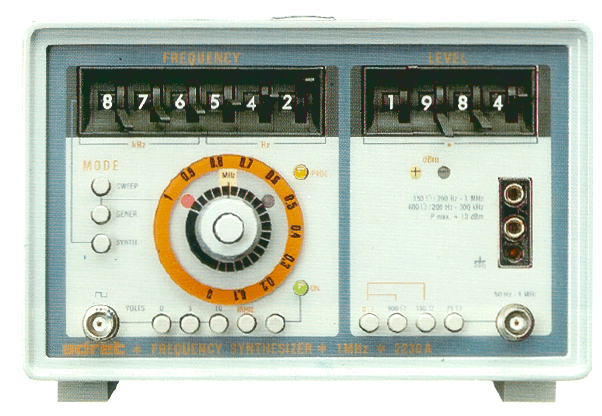

2230A Adret

High-precision level generator :

• 10 Hz to 1 MHz,
• 1 Hz resolution,
• 3 x 10-6 per day stability,
• 75 Ω, 150, and 600 Ω balanced outputs,
• -70 to +13 or 20 dBm output into 75 Ω, 0.01 dB resolution,
• Typical harmonics ≤ 55 dBc,
• 4 to 5 MHz frequency-shifted output (optional),
• Optional IEEE remote control,
• Weight 6 kg.
